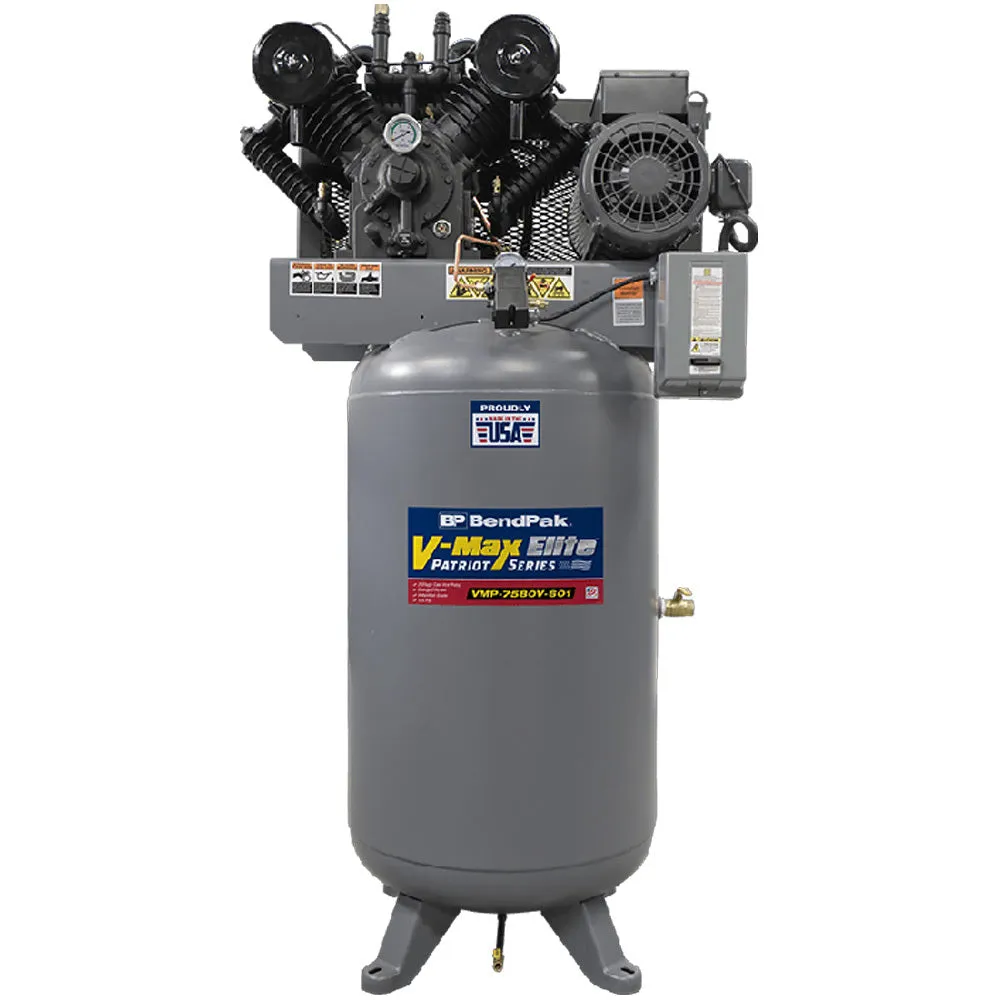

Name: BendPak V-Max Patriot Air Compressor 7.5 HP 80-Gallon Vertical Tank - 1Phase
SKU: 192755

Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services.

Meet the V-Max Patriot 7580V, 1-phase air system. Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services.

Specification:

- 1 PHASE UNIT
- Assembled in USA
- ASME, UL, CSA certified
- 7.5 HP energy-efficient motor
- Extra-quiet, low-RPM pump
- Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
- Proven air-cooled design is economical, reliable and environmentally friendly
- Two compression rings and one oil control ring provide excellent oil control and high-efficiency air delivery
- Dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life and low vibration
- Fully-enclosed belt guard
- Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
- ASME-rated tank
- Large surface area and cooling fins on cylinders and forced-air after-cooler provide efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
- Tapered roller main bearings provide full contact and support of the crankshaft, and needle-type piston pin bearings properly distribute bearing loads
- Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
- Magnetic starter provides thermal overload protection and minimizes start loads, providing long life and trouble?free operation
- ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
- Balanced flywheel and counterbalanced crankshaft result in nearly vibration-free operation
- Readily accessible disc-valves do not require disassembly of compressor piping, for easy accessibility and reduced maintenance cost and downtime
- Corrosion-resistant tubing for coolers, separators and valves for longer life and reduced maintenance
- Oversized ductile iron crankshaft provides extra strength and longer wear
- High-density, die-cast aluminum alloy rods minimize reciprocating weight
- Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
- Automatic pressure switch provides auto start and stop
- Integrated pressure unloader valves are built into the intake valve assembly on the air compressor head, reducing internal pump heat from initial start-up compression
- Pressure gauge with service valve
- Oversize replaceable air filters
